Standby Battery Diagnostics

PITE3915 Battery Tester

Find weak standby batteries faster with handheld voltage and internal resistance / conductance testing.

Designed for routine IEEE-style battery maintenance, PITE3915 helps technicians test every cell in a string, compare results with reference values and move from field readings to PC reports without interrupting service.

Get PricingDownload Datasheet
Battery capacity5-6000 Ah
Compatible cells1.2V, 2V, 6V, 12V
Voltage range0.000-16V
Resolution0.1 mΩ / 1 mV
Cells per string1-254 cells
Battery life>5 hours
Field Ready Kit

Built for battery rooms, UPS systems and telecom DC plants.

PITE3915 combines a rugged handheld tester, probe pins, heavy-duty test clamps and PC software into one maintenance workflow. The tester records voltage and internal resistance / conductance in seconds, saves data automatically and gives teams a practical basis for identifying degraded cells before they become system risks.

  • Color touch screen with keyboard operation for quick field input.
  • Low test frequency helps reduce capacitive resistance interference.
  • Built-in reference values and self-defined thresholds support result comparison.
  • Retest and compensation functions help correct missed or faulty operations.
PITE3915 battery tester standard kit with clamps, probe pins and carry bag
Standard package with tester, carry bag, probe pins and test clamps.
Test Workflow

Measure, compare and document every battery string.

Discuss your test setup

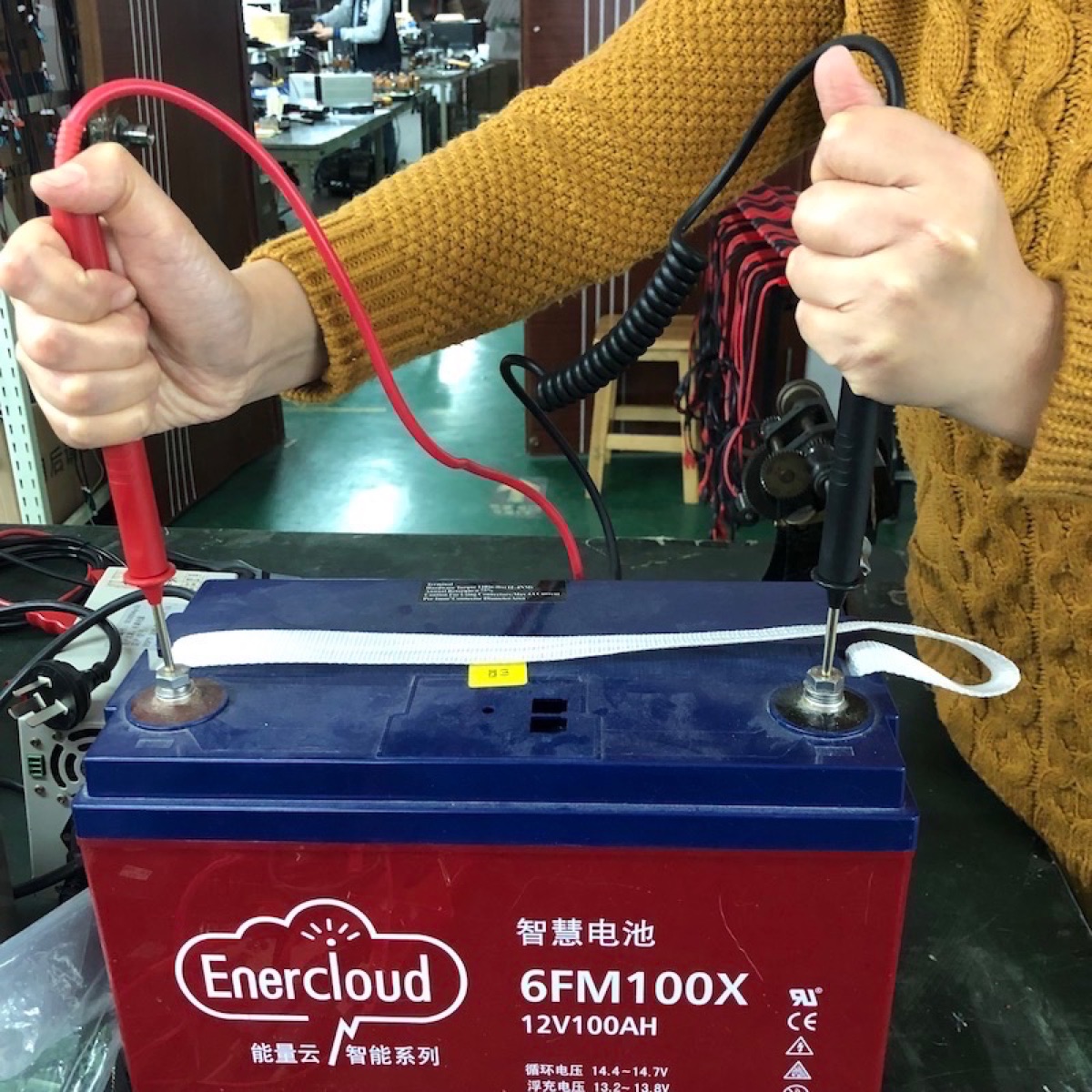

Probe pins pressed onto a battery terminal for PITE3915 testing
01

Connect with probe pins

Use probe pins for quick point contact on battery posts and narrow terminals.

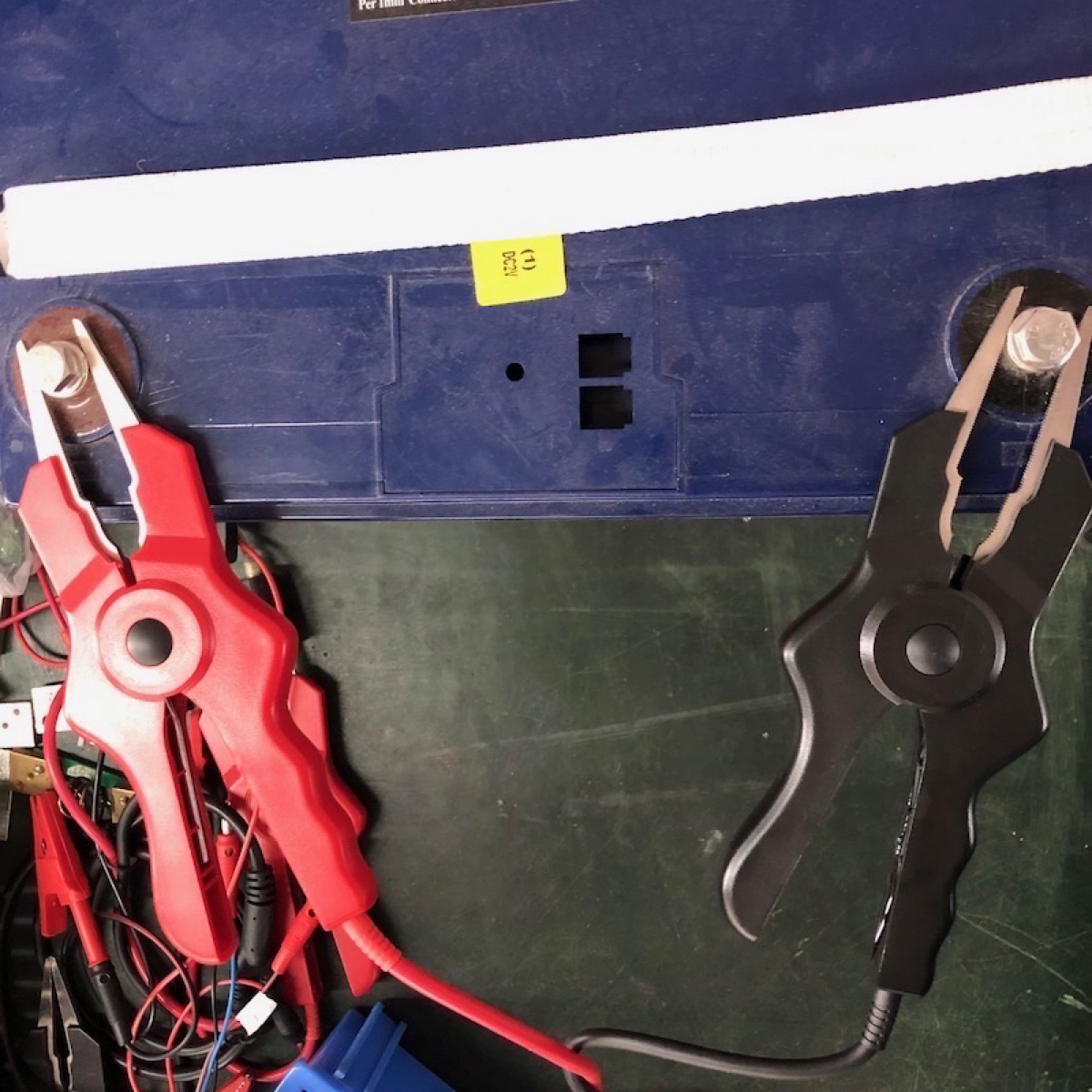

PITE3915 red and black test clamps connected to a battery
02

Clamp and test strings

Switch to clamps when the site needs hands-free contact, repeat testing or larger terminals.

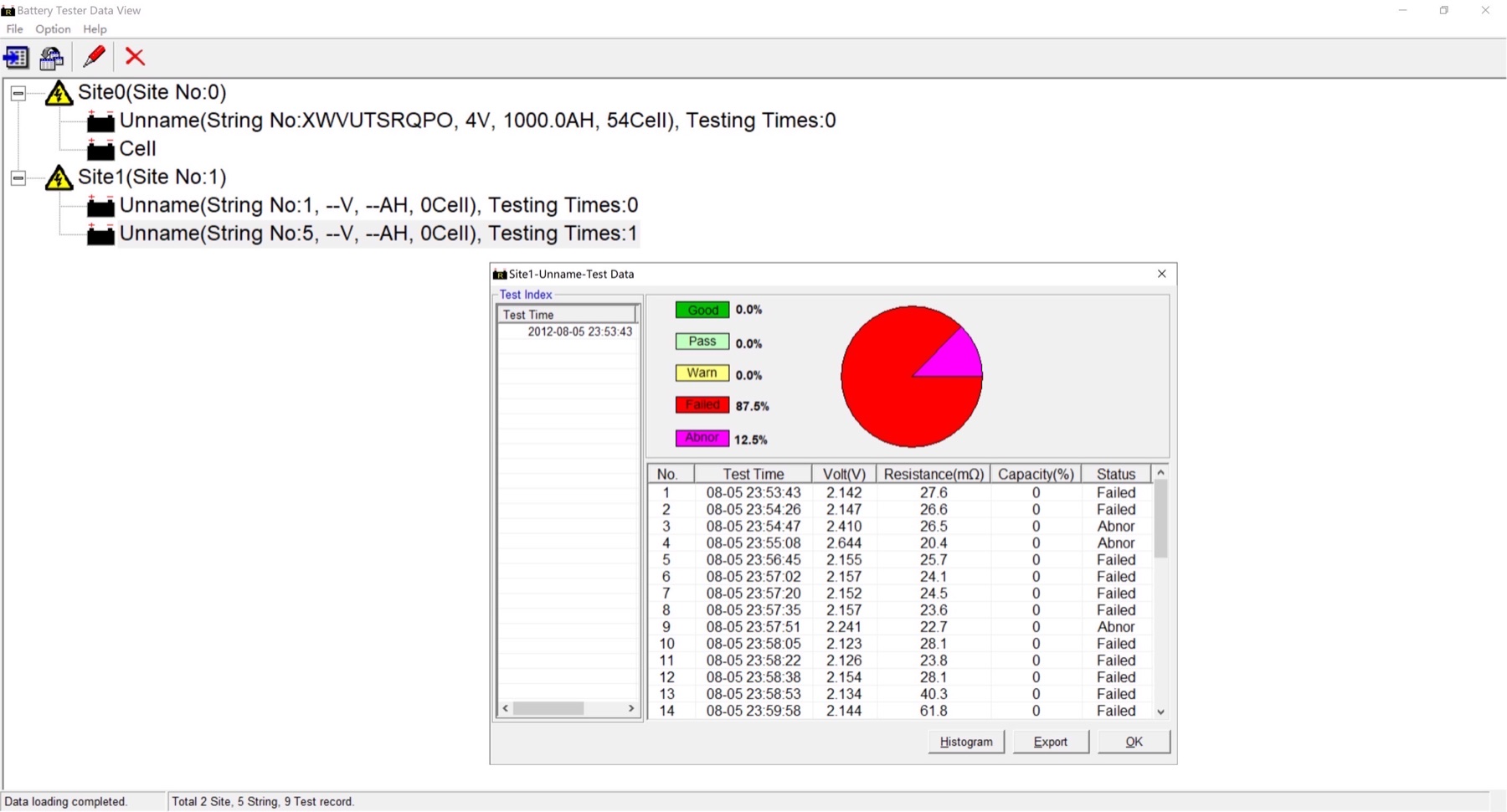

PITE3915 DataView software showing battery string records and status chart
03

Review results on PC

Transfer data by USB drive, review cell status and keep maintenance records organized by site and string.

DataView Software

Turn field readings into clear reports.

The included DataView software uploads test data from the USB drive, groups records by site and string, displays table and graph views, and exports reports directly to Microsoft Excel.

  • Status chart for Good, Pass, Warn, Failed and Abnormal cells
  • Voltage, resistance and capacity result tables
  • Histogram view for fast outlier comparison
  • Excel report export for maintenance documentation

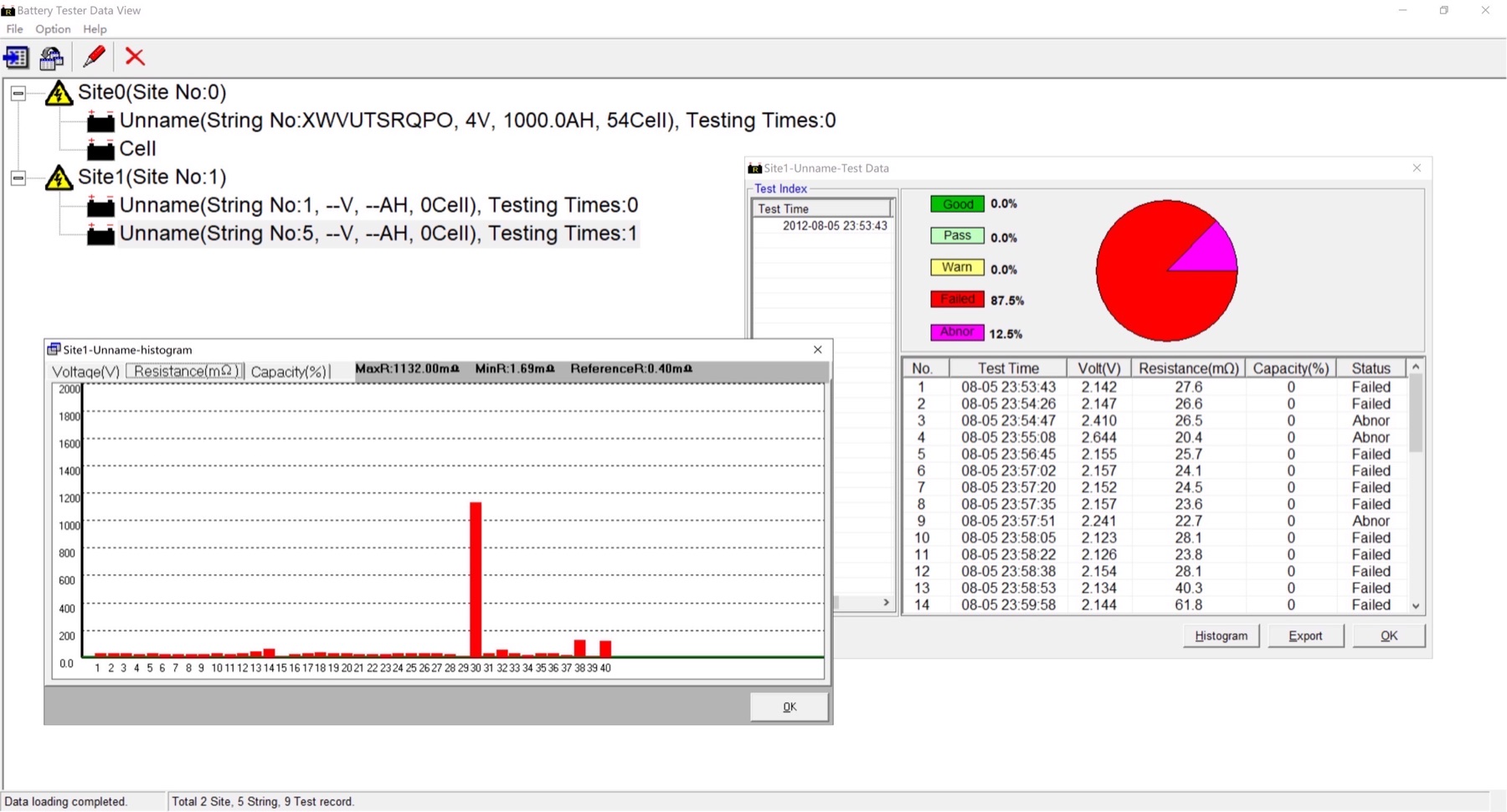

DataView software with histogram and cell test table

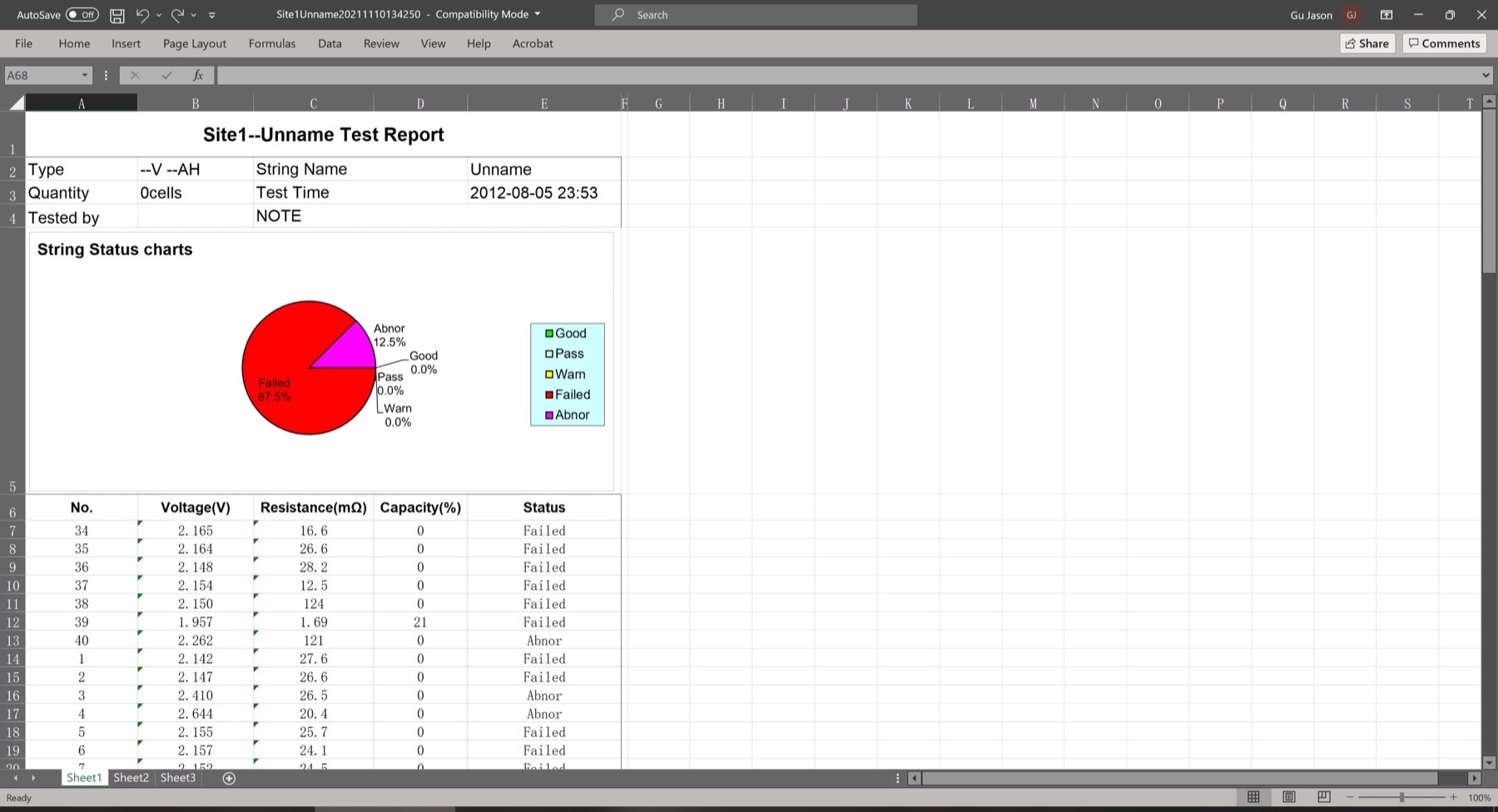

Excel test report exported from PITE3915 DataView software DataView test index and status pie chart
Accessories

Probe pins and clamps are included in the standard kit.

View datasheet

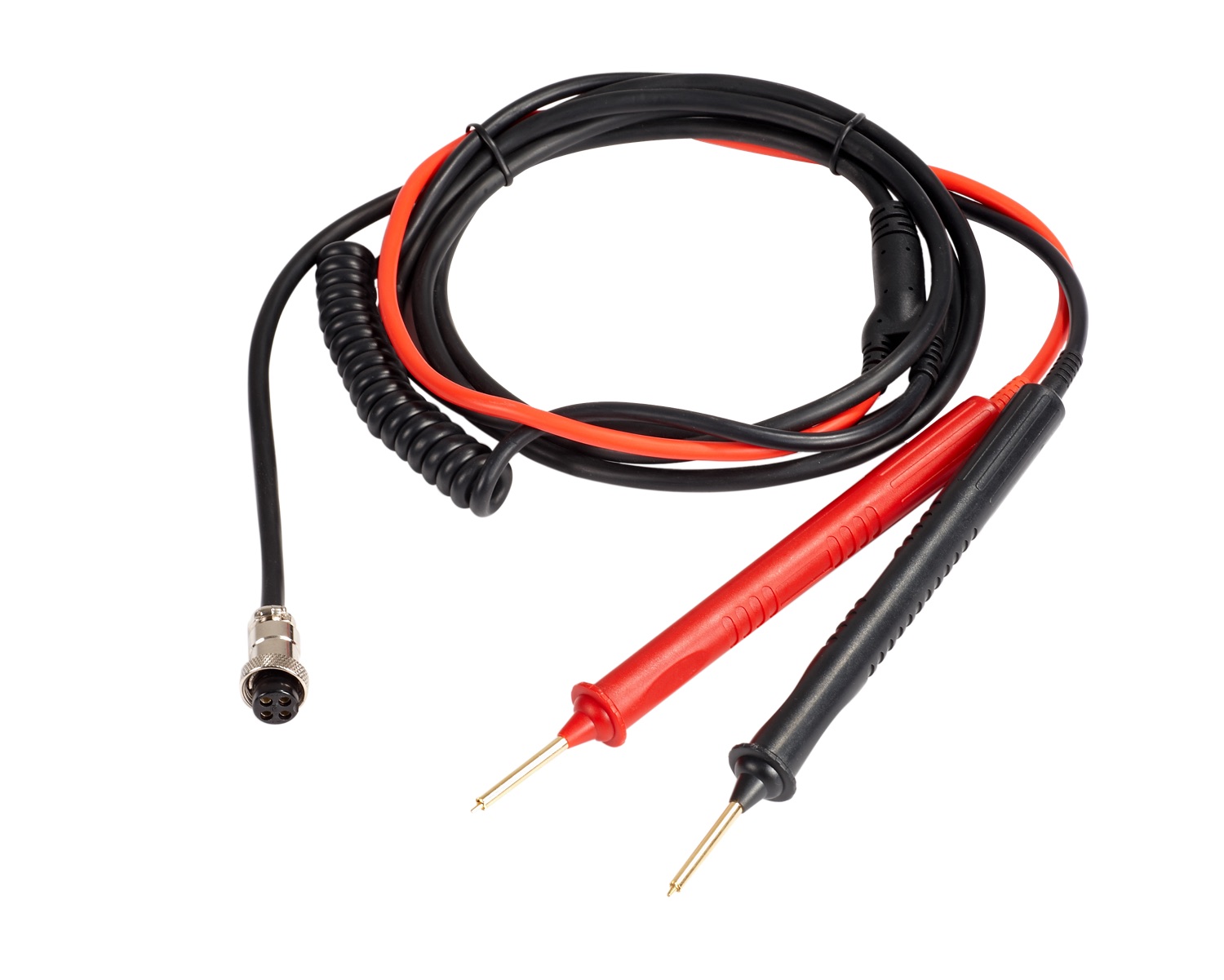

PITE3915 probe pin cable set

Probe Pin

Fast contact for dense battery racks and terminal posts where clamps are not convenient.

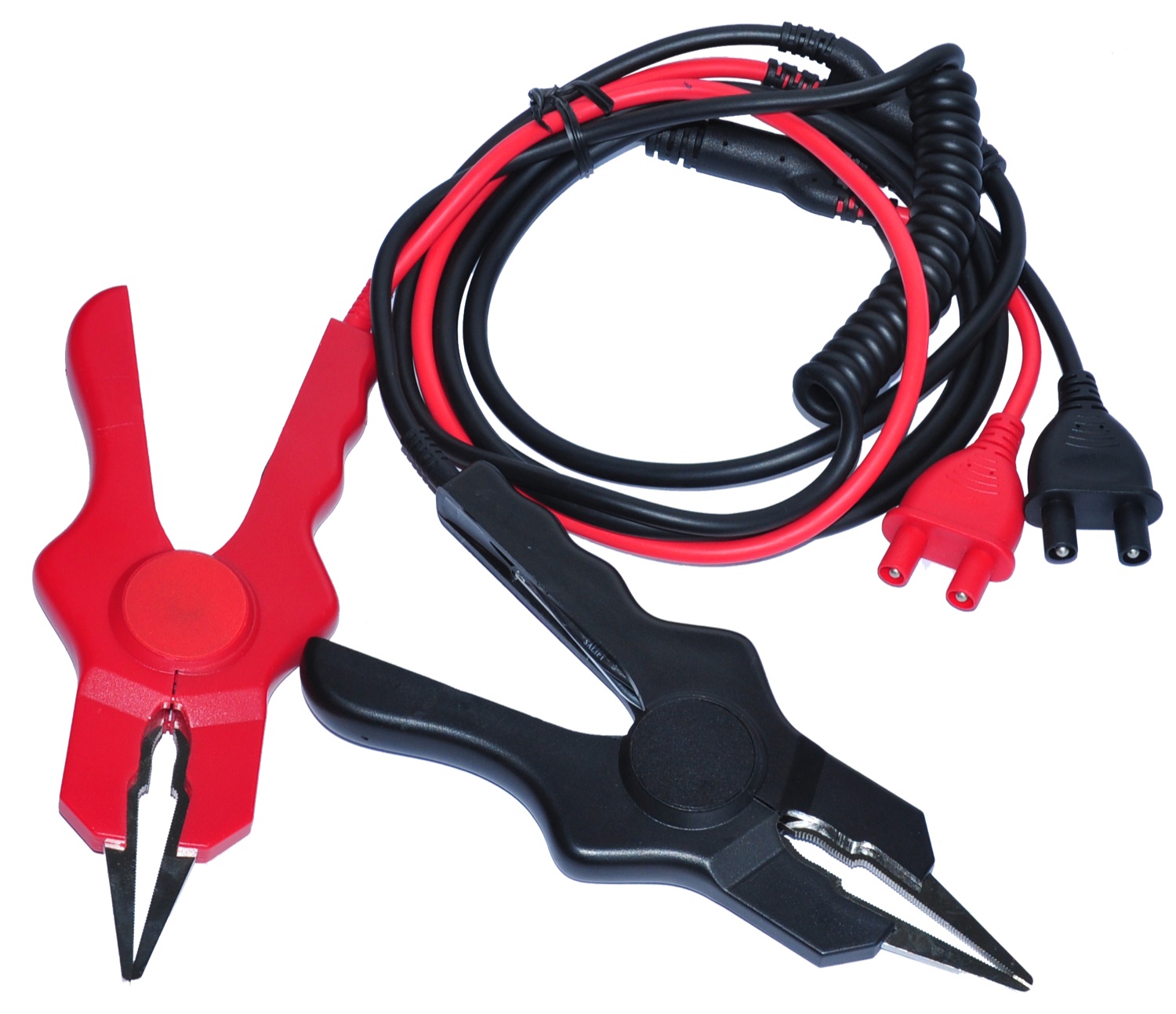

PITE3915 red and black testing clamp cable set

Test Clamp

Stable hands-free contact for repeat testing, larger posts and routine string inspection.

Standard kit includes

  • PITE3915 tester
  • Test clamp
  • Probe pin
  • Charging adaptor
  • USB converter
  • 4G USB flash drive with software
  • User manual
  • Packing list
  • Carry bag
Specifications

Technical data

Key parameters are organized from the PITE3915 product introduction. Confirm final configuration and accessories with PITE before ordering.

Battery capacity range5-6000 Ah
Compatible cell voltage1.2V, 2V, 6V and 12V
Voltage range0.000V-16V
Resistance minimum resolution0.1 mΩ
Voltage minimum resolution1 mV
Resistance test accuracy±1.0% rdg ±6 dgt
Voltage test accuracy±0.2% rdg ±6 dgt
Measuring cells per string1-254 cells
Data memoryMore than 3,000 cells
Display320 × 240 px, 3.5 in TFT touch screen
Power supply7.2V / 2400 mAh Li-ion battery
Working timeMore than 5 hours
Operating environment0 °C to 40 °C, 90% R.H.
Net weight2 kg
DimensionsL210 × W110 × H60 mm
Workflow

How teams use PITE3915

01

Create string record

Set site, string and cell information, then choose reference values for comparison.

02

Measure each cell

Record voltage and internal resistance / conductance with automatic data saving.

03

Analyze and export

Load results into DataView to review graphs, identify weak cells and export Excel reports.

PITE TECH INC engineering and support team in Shenzhen
Manufacturer Confidence

Built by PITE TECH INC, a national high-tech enterprise since 2001.

PITE3915 comes from a Shenzhen manufacturer with in-house R&D, production, sales and customer service capabilities for intelligent battery and DC power maintenance equipment.

120+ employees 2,000 m² factory area 37 patents & software copyrights ISO and high-tech credentials
View company profile

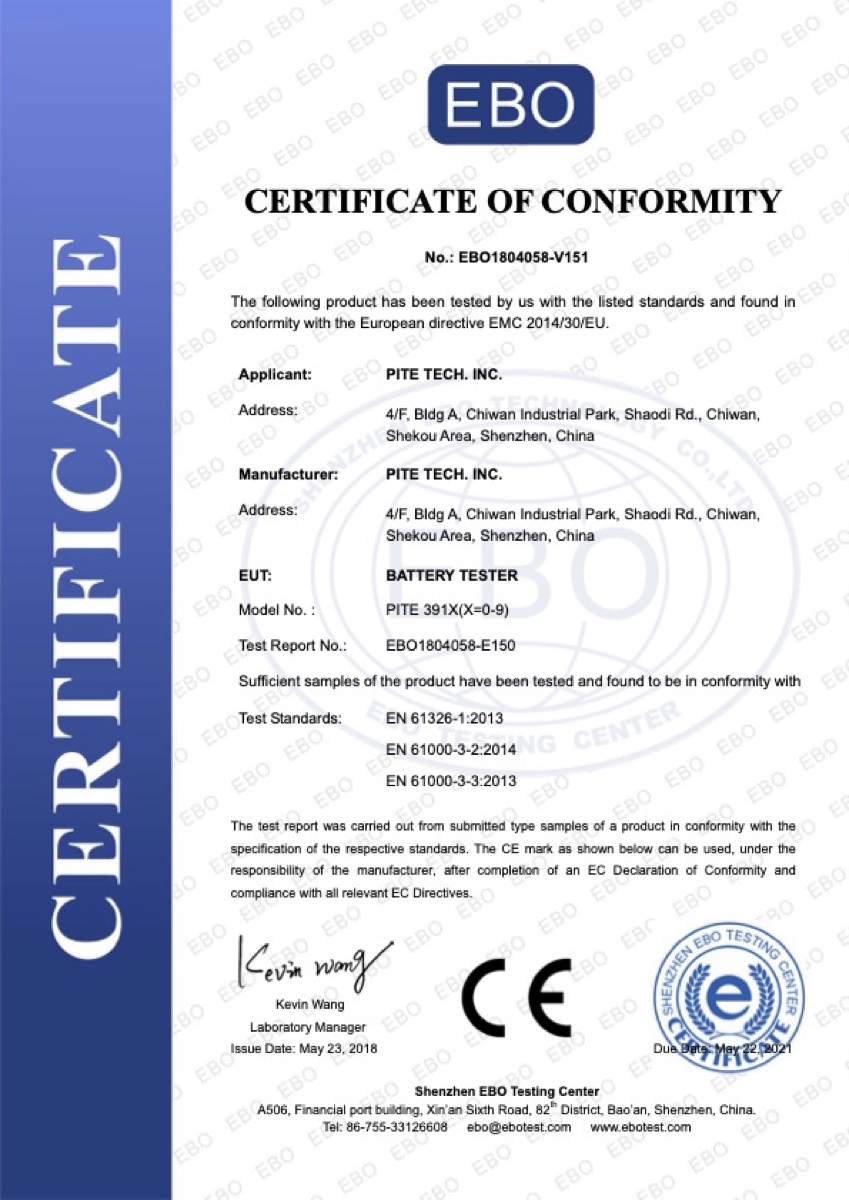

PITE3915 CE certificate of conformity
Applications & Documents

Ready for critical standby power maintenance.

PITE3915 is suited for UPS battery rooms, telecom DC power systems, substations, data centers and railway power systems where fast cell-level diagnostics and repeatable records matter.

  • UPS battery rooms
  • Telecom DC systems
  • Substation DC panels
  • Data centers
  • Railway power systems
  • Industrial backup power
